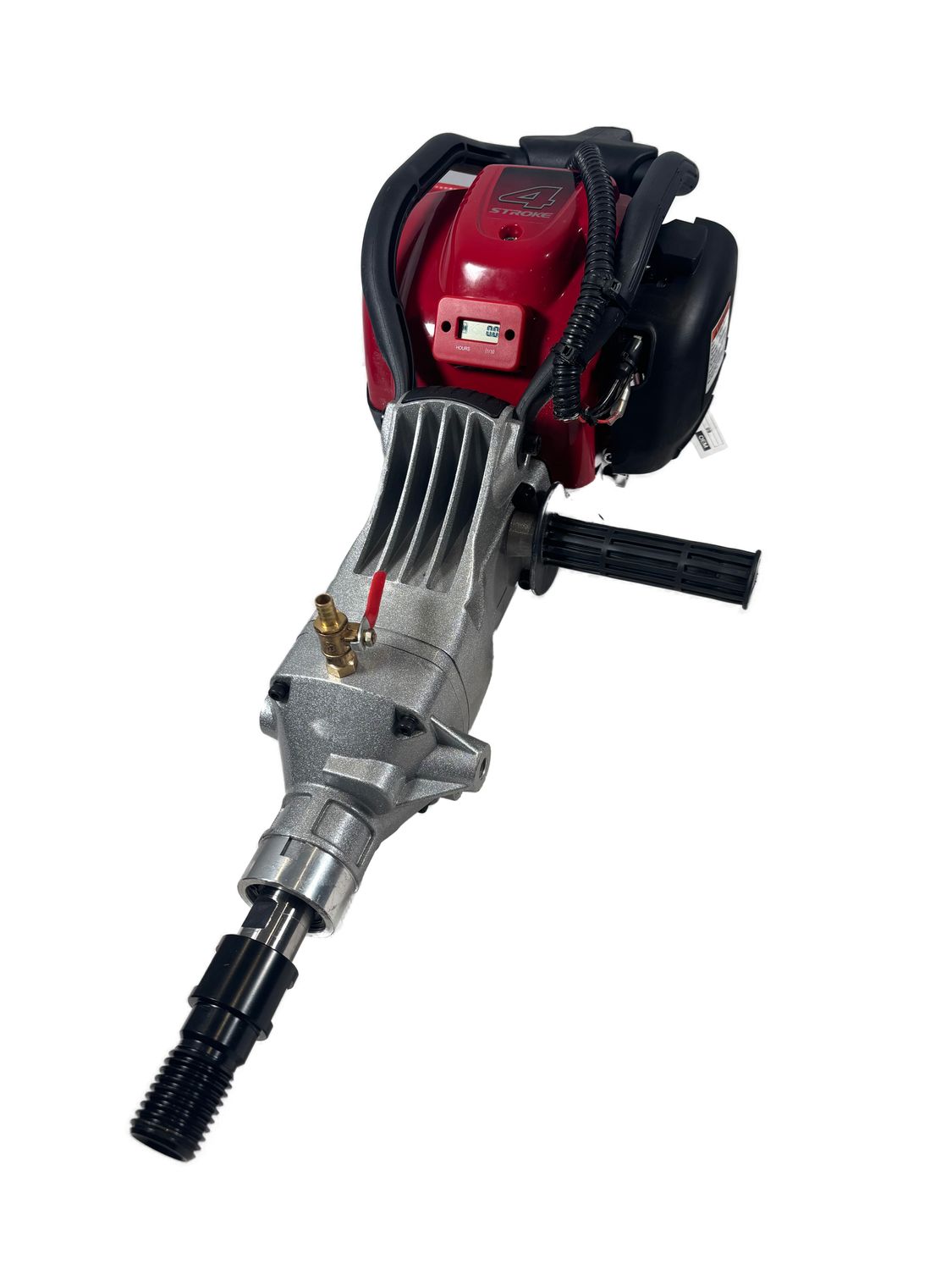

Stag Core Drill gas powered with Honda Engine

Ideal for cutting access holes in concrete sewer pipes for cameras, sign installation, anchors in concrete, utility installation holes etc.

• Max power and correspond rotating speed 1000W/7000 rpm
• Max Torque and correspond rotating speed 1.2N.m/5300rpm
• Tool bit rotation approx 350 to 850 rpm
• Noise. ≤104dB(A)
• Weight 25 lbs 11kg
• Bit attachment thread 23mm
• Attachment of side handle or own custom stand on 5 holes M12 x 1.5

• Powered by Honda GX35 engine 4 stroke
• Centrifugal clutch
• Max Torque 1.2Nm /5500rev/min
• Exhaust baffle to direct exhaust away from operator.
• Hour meter mounted on engine for service scheduling.
• Left or right hand operation.
• No mixing of fuel, best to use premium fuel
• Steel tank guard.
• Uses industry standard core bits
• Wet or dry operation depending on core bit.
• Water inlet shut off for water tank.
• External grease access point for gears.
• Side handle for LH or RH operation.
• Drills up to a 130 mm diameter hole.
• Drill Vertical, Horizontal, Inverted Or At Any Angle In Between
• Side tapped holes suitable to bolt on a own custom drill stand.
• One person operation.
• No hoses or electrical cords.

• User Manual
• Tool kit
• Hour meter on engine to prompt next engine service
• 22mm to 1 1/4 inch adapter
