Lockmaster Key Card

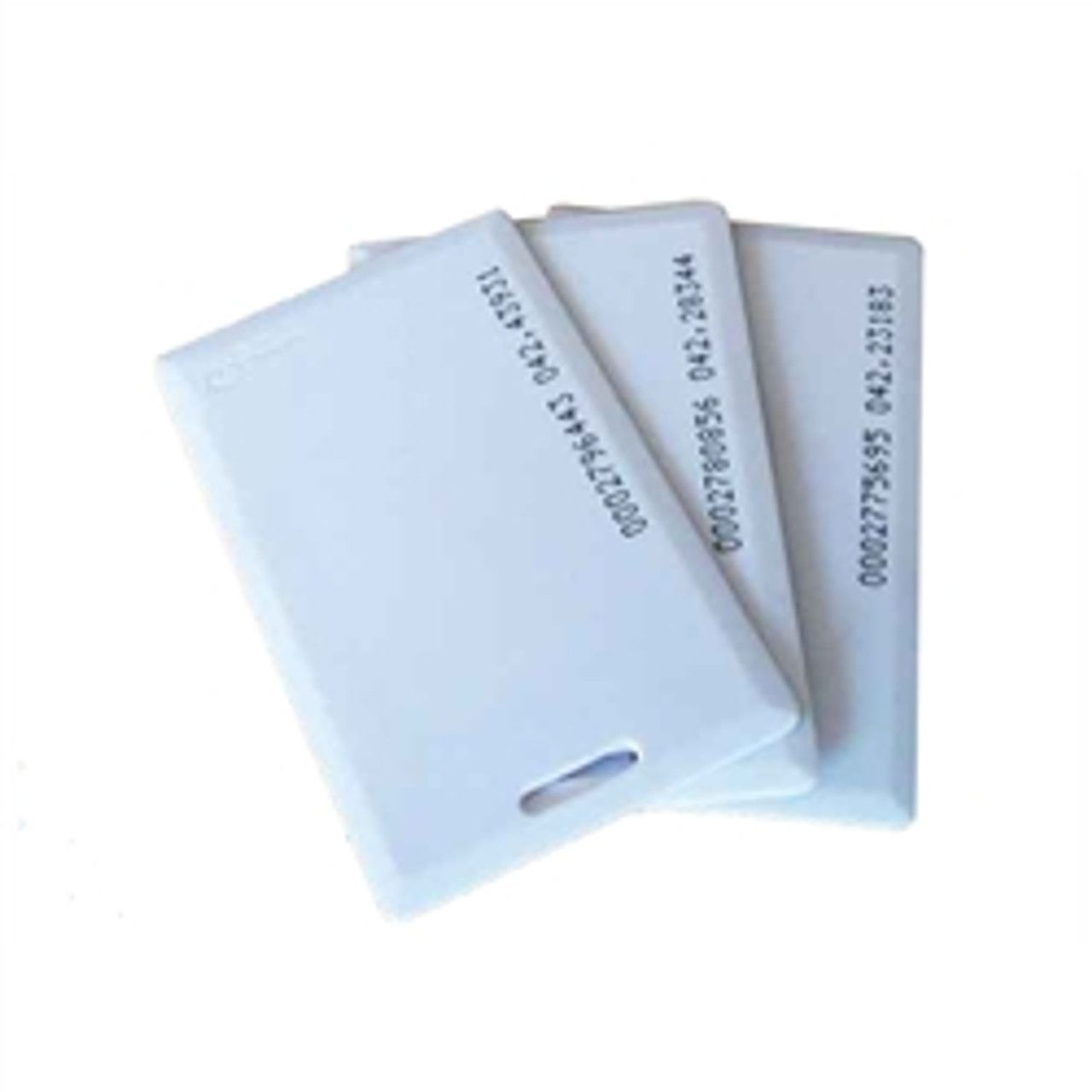

Wireless EM Key Card LM170

The LockMaster Wireless RFID key card works with the LM106 wired key pad to enable fast access when the card is held in close proximity to the LM 106 key pad.

The key pad can be set to only keycard or keycard plus keyed access.

The key card is easily programmed with a few simple steps on the keypad.

Frequency 125KHz

Operating temperature -10 to +50C

Width 54mm

Length 86mm

Thickness 1.8 mm

Inductive range: 2-15mm
Readable and Writable Time: >100000 Times
Reaction Time: 1-2mS
Data Retention:>10years
