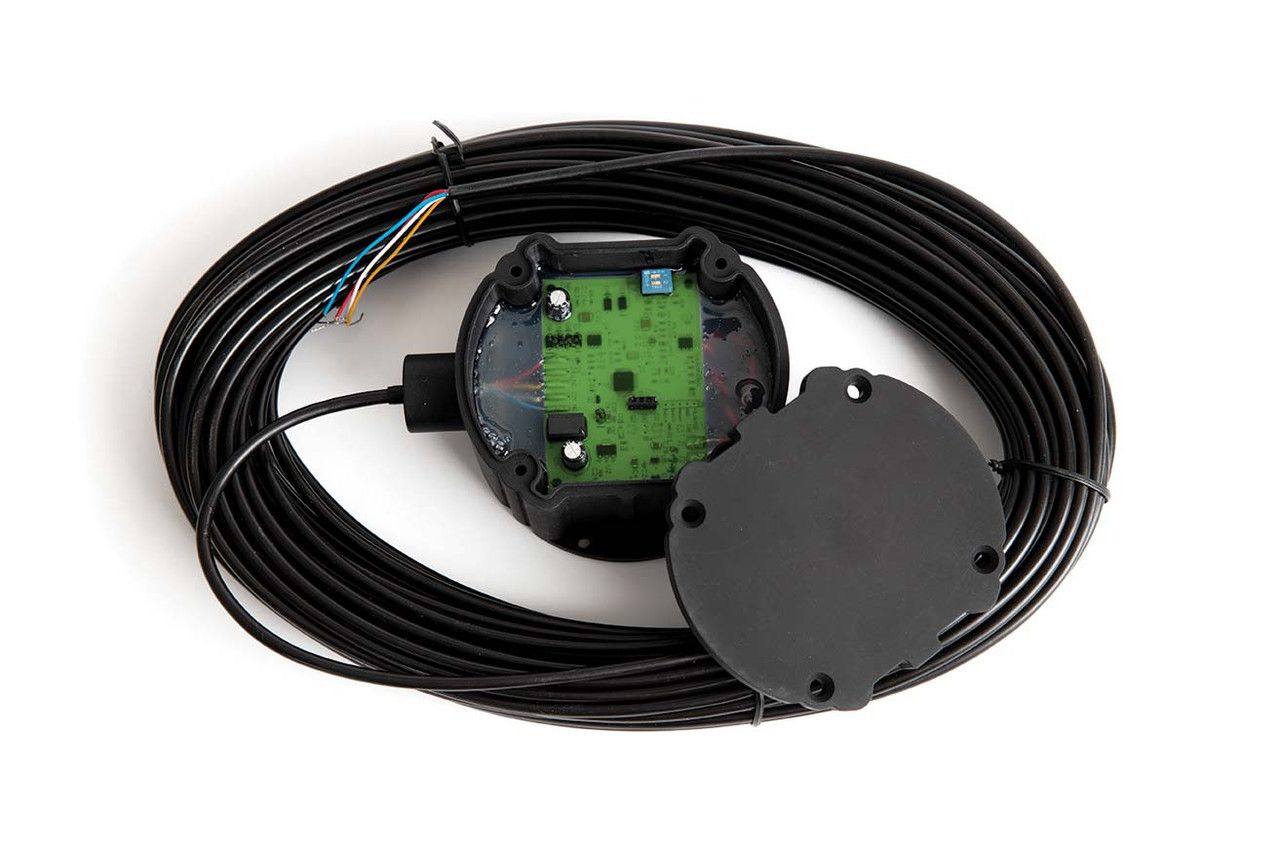

Nice Cartel Entry / Exit Wand

Self-contained free exit gate sensor system, designed to detect moving vehicles and open your automatic gate so you and your visitors can leave without having to use a remote, key-fob, or keypad. Connects directly and works with many gate opener systems.The sensor for our wired systems installs in the grass beside the drive without the need to disturb your driveway. The wireless sensor can be installed beside the driveway, in the driveway, or on a post adjacent to the drive.

• If installed above ground, use conduit to mechanically protect cable (animals will eat).
• Vehicle should be going at least 2kph at sensor to be detected

Technical Specifications

Power Required 8–24 VAC or 8–30 VDC

Stand-By Current 30–70 Microamps (µA)

Alarm Current 40–60 Milliamps (mA)

Relay Contacts SPDT, floating, N.O. or N.C. (Form C)

Relay Contact Rating 1 amp/24 VDC (1 mA at 5 VDC min. load)

Relay Time 2–3 seconds

Enclosure Rating IP67

Strength Rating 9.53 ton-force 8646 kgf

Temperature Range -25° F. – +140° F. -32° C. – 60° C.

Dimensions 4.5 in. dia. x 3.5 in. high

Weight 8 lbs. with 200 ft. cable
