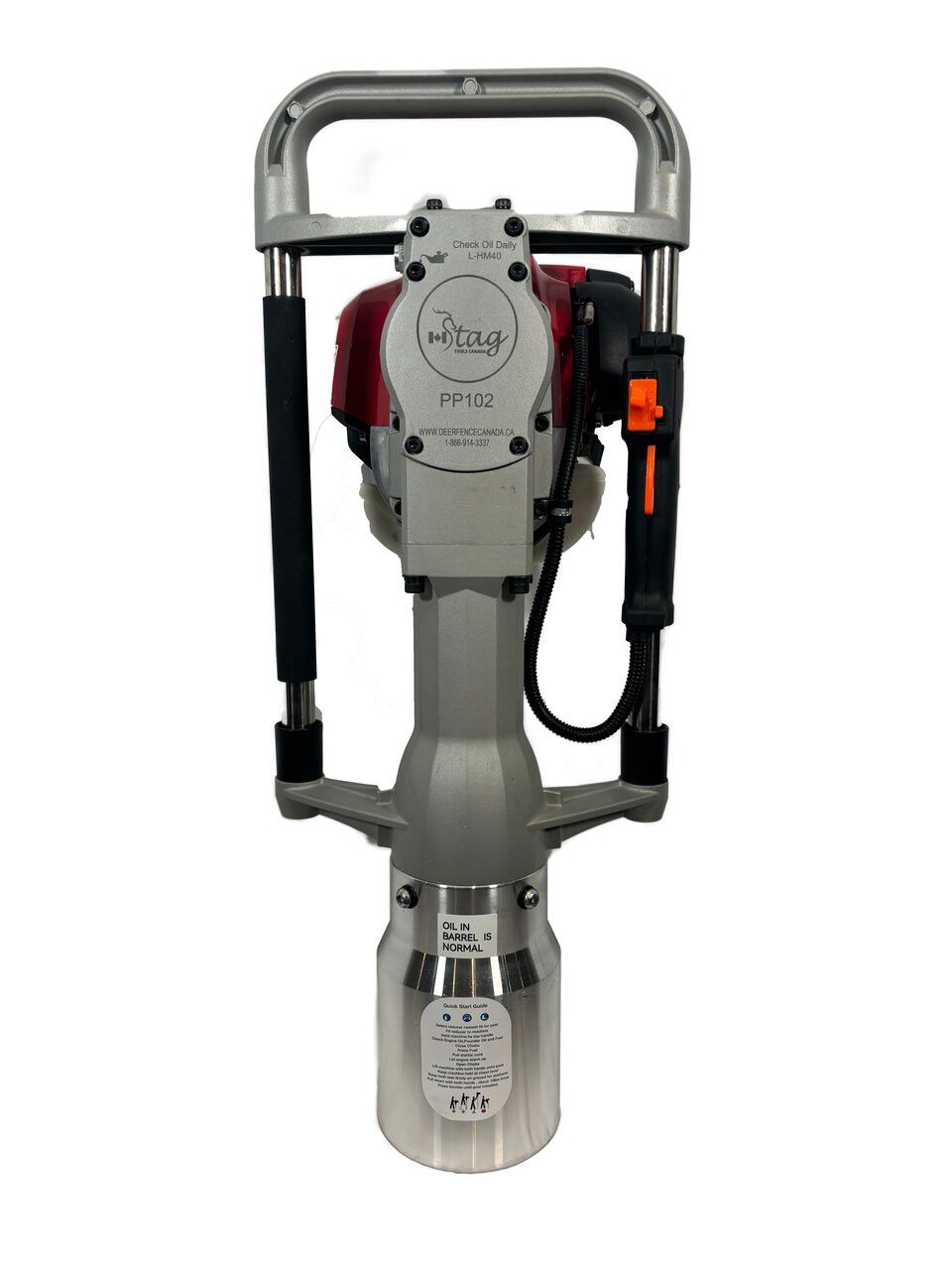

ProdPost Pounder MAX PP102FE 50cc Honda Engine. FREE SHIPPING to Most locations in Canada

This is the only Post Pounder that is built/made in Canada.

We have combined the best of the best to design and manufacture this MAX STAG POST POUNDER

The extra power of the 50cc engine and heavier hammer makes this version of the machine suitable for driving Wooden 4 inch in diameter pencil posts and 4 x4 dressed pressure treated or cedar square posts. This makes it ideal for the farm and forestry applications.

Steel posts are driven in seconds at double the speed due extra force available than the PP102 versions with the 50 cc engines, hence the firm choice of Townships and municipalities.

The MAX STAG PP102FE Universal Post Pounder has the following key user features.

• One model does all the Municipal and farm tasks.
• Large chuck fitted as standard.
• Powerful 50cc Honda 4 stroke engine.
• Heavy hammer gives 50% more striking power for same rpm.
• Impact Energy 33-75 Joules( 24 to 55lbs)
• No load hammer disconnect.
• Rigid frame with Floating anti vibration handles.
• Weight 45.5 lbs

Mechanically the Post Pounder has innovative features and intuitive design to improve reliability and performance

• Engine mounted closer to machine centre of gravity so less overhang forces.
• Clutch drum threaded onto drive shaft not brazed to drive shaft.
• Helical gears. Hence gear teeth load always fully engaged unlike traditional spur gears.
• Crankshaft screw fixed to large gear. No key way so no keys to come loose in key way with vibration..
• Crankshaft to Con rod top end bearing SKF roller type continuously lubricated from oil in the reservoir above and feeds onto hammer / cylinder . Not a greased phosphor bronze bushing.
• Hammer/cylinder more than twice the weight of current designs.
• Long hammer little to none side chatter on cylinder.
• Strike plate design rather than heavy anvil generating better energy transfer to the post without energy losses moving the heavy anvil.
• Rigid framework between top and bottom members to increase overall machine integrity. Allows handles to be free floating.

What is included:-

• PP102FE fitted with Honda 50Cc engine.
• Fitted with 100mm chuck with retaining ring, 3 adapters for smaller diameter posts.
• Included in box is the 120mm chuck
• BLM case moulded to machine wheeled protective case, two carry handles, vertical and horiszontal
• Tool kit
• L-HM46 Hydraulic oil dispenser with filler spout.
• User Manual
• Free Shipping Canada
• Warranty 2 year limited warranty on Pounder Section , Honda warranty on Engine . The warranty does not cover physical damage caused by miss-operation or dropping the machine. Warranty non-transferable from original purchaser. On shipment the warranty is automatically registered to the original purchasers invoice number

Optional

• PP102 60mm steel chuck conversion kit. https://deerfencecanada.com/stag-pp102-60mm-chuck-...
• Face plate laser engraved with Municpality/Township logo and name for added security $39.
