Nice Gate Opener

NiceHome Aria 400 installer friendly 24v swing gate opener dual gate kit, for use with gate leaves up to 4.5m in length and 450kg in weight. Recommended for heavy gates.

Designed for fast, simple and cost-efficient installation – ensuring you are satisfied with the results!

Features

• Fast: the gate can be opened and closed in just 18 seconds*.
• Quick and Simple Wiring: The ECSBus system allows for connecting up devices such as photocells, flashing lights and more using just two wires!
• Safe: precise manoeuvres, thanks to built-in opening and closing limit stops. In the event of blackout, easy opening of the gate from the top part of the motor thanks to the release keys.
• Convenient: Optional battery back-up allows for operation during a blackout (PR100 model)
• Simple: pre-wired motor for simplified connection.Thanks to the adjustable fixing brackets, no welding is required.
• Environmentally-friendly: The Aria swing gate kits are compatible with the SoleKit solar power kit and wireless accessories line.
• Compatibility: The NiceHome range replaces the previous MHouse range of automation equipment and accessories.
• 1 Year Warranty

*for 90° opening, without acceleration and deceleration

Technical Features

• Strength and elegance die-cast aluminium casing, that will match any style, can open the heaviest gates without effort.
• No welding required adjustable multi-position brackets
• “Plug’n Play” connections very simple and quick, with easy identification of wires and terminals
• Easy Connection System ECSBus system for connection of up to seven pairs of photocells using only two wires
• Quick motor release for manual gate operation. Release keys are supplied with the kit in order to disengage the motor.
• No black-out: the buffer batteries guarantee up to ten opening and closing manoeuvres even in the event of power outages (additional accessory)

Electronical features

• No waiting in front of the gate: only 18 seconds to open and close
• Extra safe thanks to the low-voltage connections (24 V), the safety accessories and the automatic obstacle detection feature. Obstacle detection means that if something or somebody comes into contact with the gate while it's in motion then it will stop and reverse slightly.
• Auto-programming: WG10s automatically calculates the most suitable operating parameters for each gate
• Autodiagnostic system identifies and immediately signals any connection errors or malfunctions

Gate opener kit for gates up to 4.5m and 450kg.

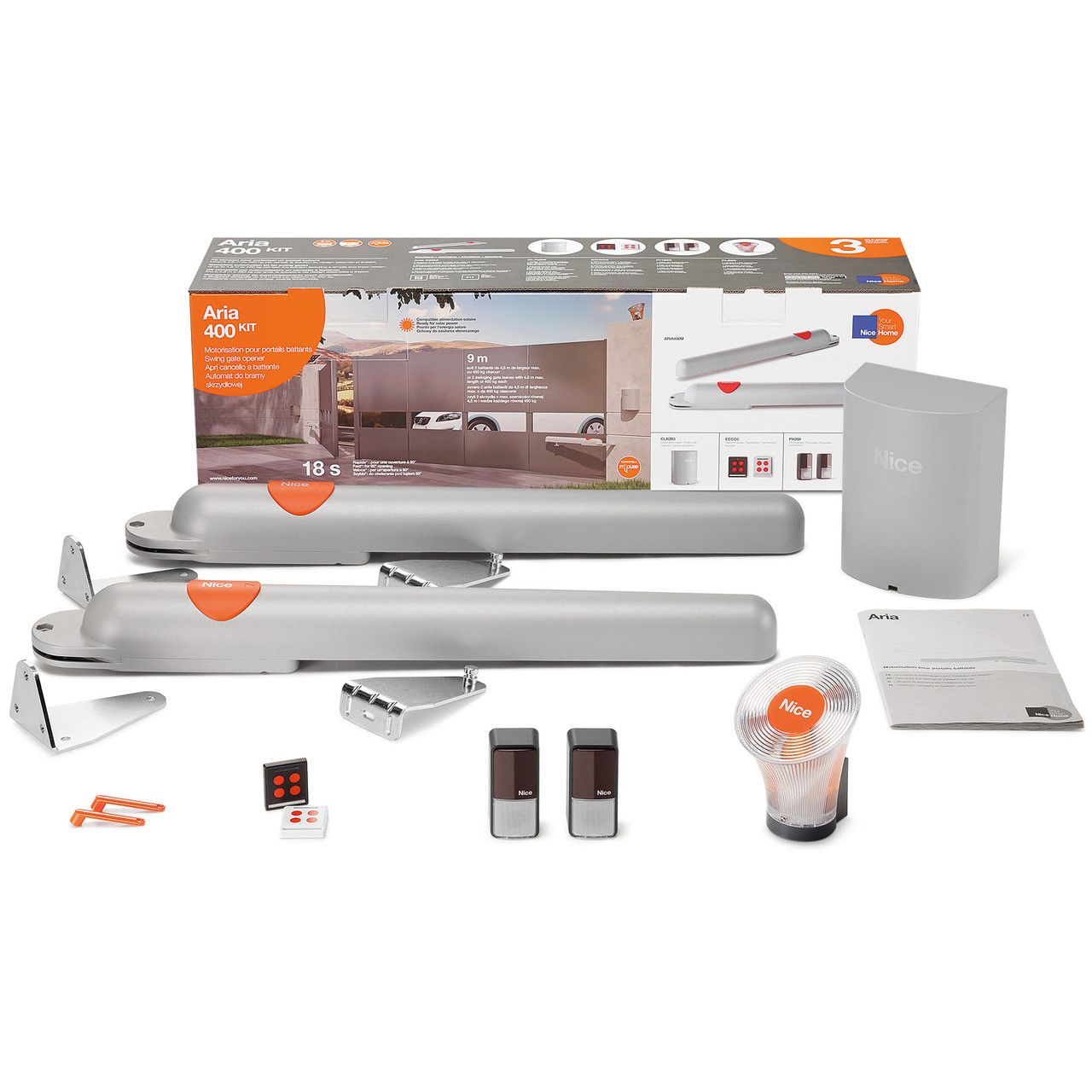

Dual opener Kit comprises:-

ARIA400/V1 (450KG) DOUBLE ARM KIT

(2)ARIA400M gate opener arms

(1)CLB202 control unit with surge arrestor wired in.
(1)FL200 flashing light with built in antenna
(1)PH200 thru beam photocell

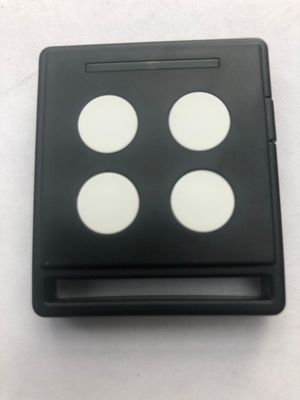

(2) 4 button transmitter

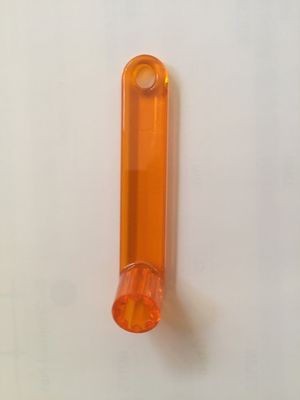

(2) Release keys for manual opening during power failure.

Required for installation

(40FT) 3 wire shielded cable,
(50FT) 2 wire shielded cable

110 volt outlet with surge arrestor.

Single Gate Kit comprises:-

ARIA400/V1 (450KG) single ARM KIT

(1)ARIA400M gate opener arms

(1)CLB202 control unit with surge arrestor wired in.
(1)FL200 flashing light with built in antenna
(1)PH200 thru beam photocell
(2) 4 button transmitter

(2) Release keys for manual opening during power failure.

Required for installation

(40FT) 3 wire shielded cable,
(50FT) 2 wire shielded cable

110 volt outlet with surge arrestor.
